FH50528

MANUAL CAROUSEL, 30DIA, 4000LB CAPACITY

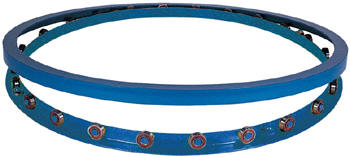

The Carousel rotates materials 360 degrees with the assistance of an operator.  Now loading and unloading operations can be done more efficiently with less fatigue and risk of back injury.  The carousel may be added to an existing work bench, scissor table or simply placed on the floor.  Constructed from two pieces of rolled structural angle.  A series of roller bearings transfer the load smoothly and evenly to the supporting surface.  Four guide rollers keep the rings aligned.  The overall height of the carousel is only 2.25"

OPTIONS:

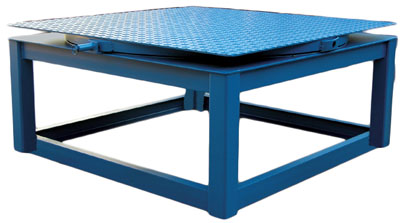

- 12" Elevated Base (FH50543)
- 24" Elevated Base (FH50544)
- 1/4" Thick top plate, 48" Dia Round (FH50545)
- 1/4" Thick top plate, 48" x 48" Square (FH50546)
- Manual Brake, field installed (FH50548)
