FH01303

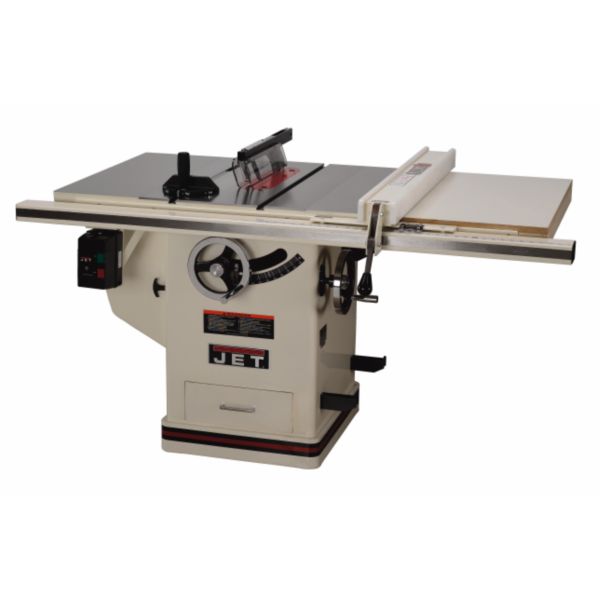

JET 10" DELUXE XACTA TABLESAW, 3HP, 30" RIP

If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10" DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.

DETAILS

-EXCLUSIVE 30" Commercial XACTA® Fence II with T-square design

-Quick release riving knife greatly reduces binding/kickback risk

-Push button arbor lock (patent pending) for rapid blade change

-Shrouded Blade increases dust collection efficiency

-Standard 11" left and right cast iron extension wings provides the largest table surface in its class

-Poly-V drive belt system delivers efficient, quiet operation

-Rail-mounted magnetic switch is easy to reach and provides overload protection

-Enclosed cabinet with built-in sealed storage drawer

-Hinged motor cover on cabinet gives quick access to the motor and belts

-Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters

-Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement

-Built-in 4" port for dust collection

-Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning

-Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning

-Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt

-Arbor wrench

-Powder coated paint for a long-lasting, chip-resistant finish

SPECIFICATIONS

JET Model Number	JTAS-10XL30-DX
Blade Diameter	10"
Arbor Diameter/Speed	5/8" / 4300 RPM
Maximum Depth of Cut	3"
Maximum Depth of Cut at 45°	2-1/8"
Table Height	34"
Motor Power	3 HP
Motor Voltage	230 V
Motor Current	14.5 A
Motor Phase	1 Ph
