FH01003

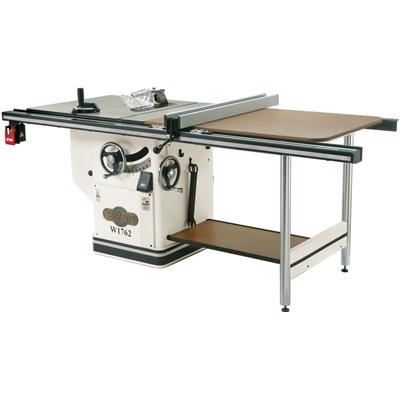

Shop Fox 12" 7-1/2 HP 3-Phase Cabinet Table Saw W/Extension Table

Description:
SHOP FOX W1762 12" table saw is loaded with features you'd expect to find only on machines priced much higher. With its 7-1/2 HP, 3-phase motor, heavy-duty legs and extension table, quick release riving knife, splitter, blade guard, digital bevel angle readout, rail-mounted switch, precision-ground cast iron table, cast iron trunnions and a 12" blade, this saw can handle the duties put to it in a professional shop environment!

Specifications:

• Motor: 7-1/2 HP, 220V/440V*, 3-phase
• Amps: 18.8/9.4
• Blade tilt: Left
• Table height from floor: 35-3/4"
• Table size w/ extension: 30-3/4" x 78-3/4"
• Arbor speed: 3,600 RPM
• Arbor size: 1"
• Maximum dado width: 1"
• Maximum depth of cut @ 90°: 4"
• Maximum depth of cut @ 45°: 2-3/4"
• Maximum rip capacity: 52"
• Includes 12" blade
• Precision-ground cast iron table
• Cast iron trunnions
• 3/8" x 3/4" T-slots & miter gauge
• 4" dust port
• Power transfer: V-belt
• Steel cabinet
• Hinged motor cover
• Right hand extension table
• Magnetic switch with thermal overload protection & large off paddle for safety
• Quick release steel splitter
• Digital readout for bevel angle
• *440V operation requires the purchase of a 440V thermal relay & magnetic contactor
• Approximate shipping weight: 901 lbs.
• Shop Fox Part # W1762
