FH01002

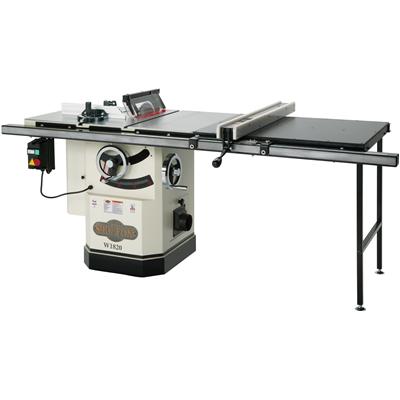

Shop Fox W1820, Cabinet Saw w/ Riving Knife & Long Rails

Description:
Every part of this saw says quality and performance. From the heavy cast iron trunnions, 3 HP Leeson® motor and triple belt drive to the massive cast iron table and wings, this table saw is built to last a lifetime. You'll also appreciate the camlock T-fence, riving knife, heavy cast handwheels, magnetic switch, T-slot miter gauge with fence extension and flip stop and 4" dust collection port. A true riving knife follows the up and down and tilt movement of the blade. Features an extra 50" rip capacity - more than enough to rip to the center of a standard sheet of plywood, long extension table with adjustable legs, square steel tubing frame and dimensionally stable top. CSA certified meeting CSA C22.2 #71.2-08 and UL 987 standards!

Specifications:

• Motor: 3 HP, 230V, single-phase
• Amps: 12.8
• Blade tilt: Left
• Arbor size: 5/8"
• Arbor speed: 4300 RPM
• Maximum depth of cut @ 90°: 3-1/8"
• Maximum depth of cut @ 45°: 2-3/16"
• Maximum rip capacity: 50"
• Maximum dado width: 13/16"
• Precision ground and polished cast iron table and wings
• Cast iron table size: 27" x 40-1/4"
• Table size with extension: 27" x 74"
• Table height from floor: 34"
• Massive cast iron trunnions
• Quick release riving knife, blade guard and splitter assembly
• Adjustable T-slot miter gauge with anodized fence extension and flip stop
• Wide span easy glide T-fence system
• Camlock fence with Phenolic face
• Nylon runners inside fence head assembly
• Knurled knobs for fine fence adjustments
• Sloped inner cabinet floor for efficient dust transport
• 4" dust port with trap door opening
• Includes standard & dado table inserts
• Accessory hooks
• Motor guard
• Powder coated paint
• Magnetic switch with thermal overload protection
• Overall dimensions: 82" L x 45-1/2" W x 40" H
• Approximate shipping weight: 579 lbs.
